THERMTEC Cyclops 640D Thermal Imaging Monocular

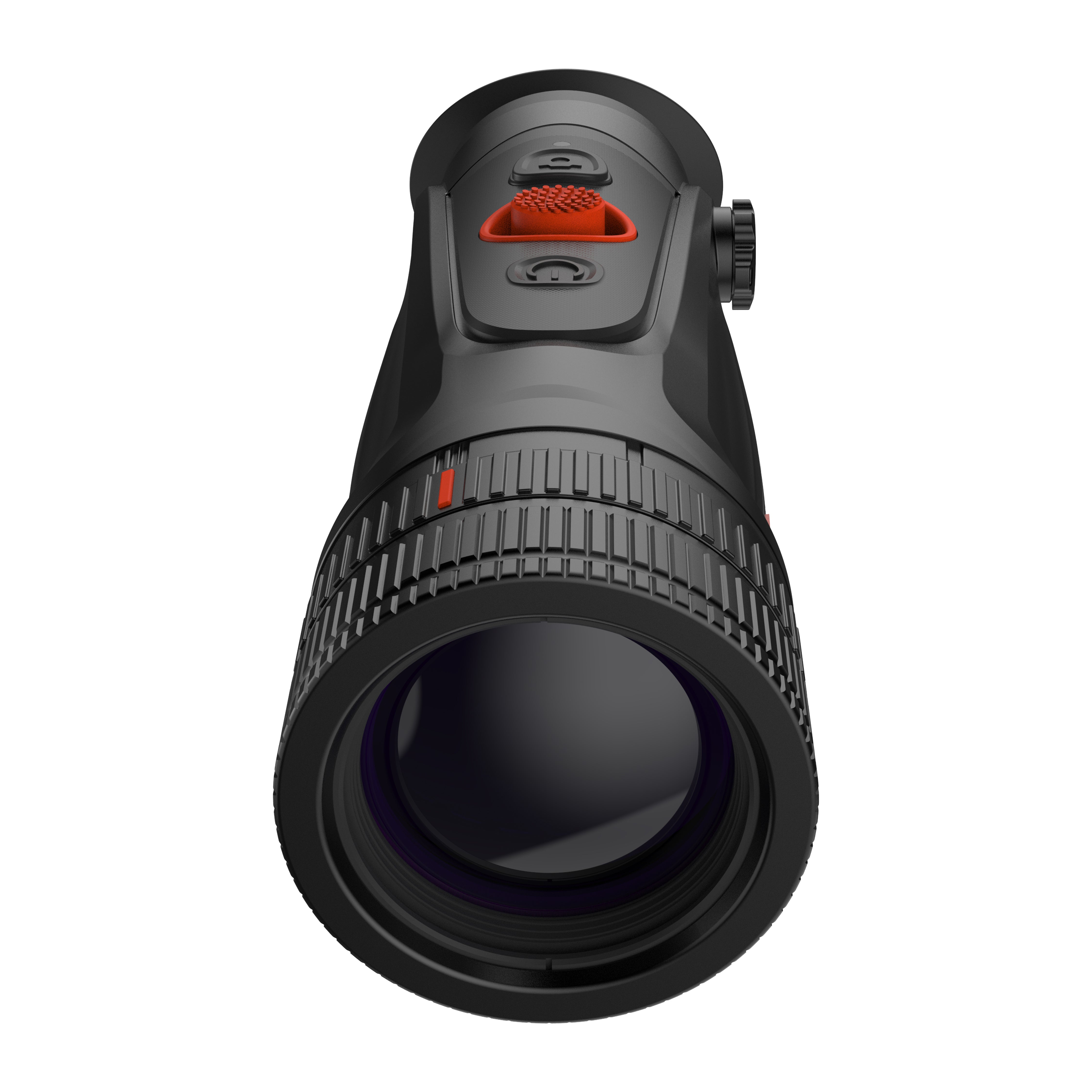

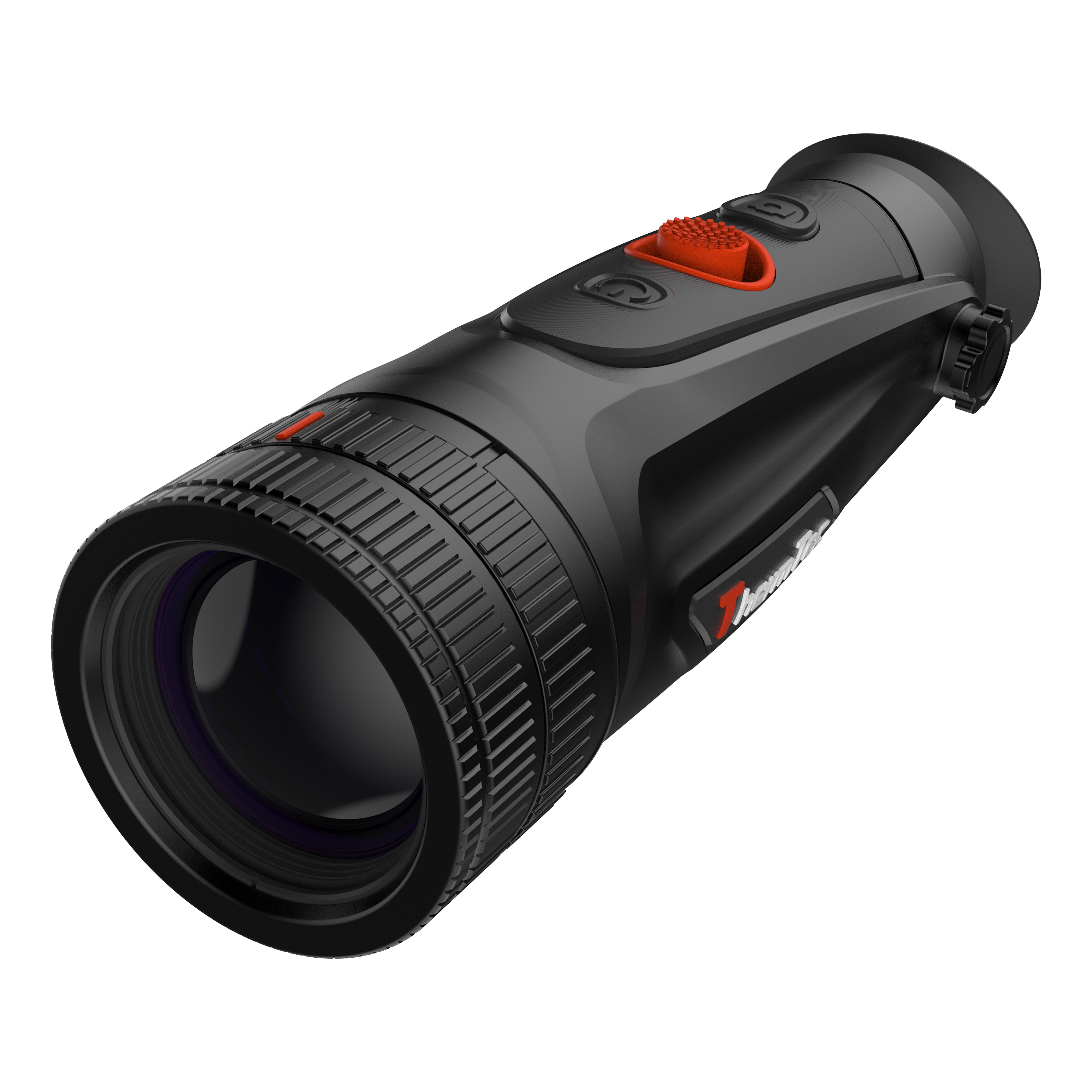

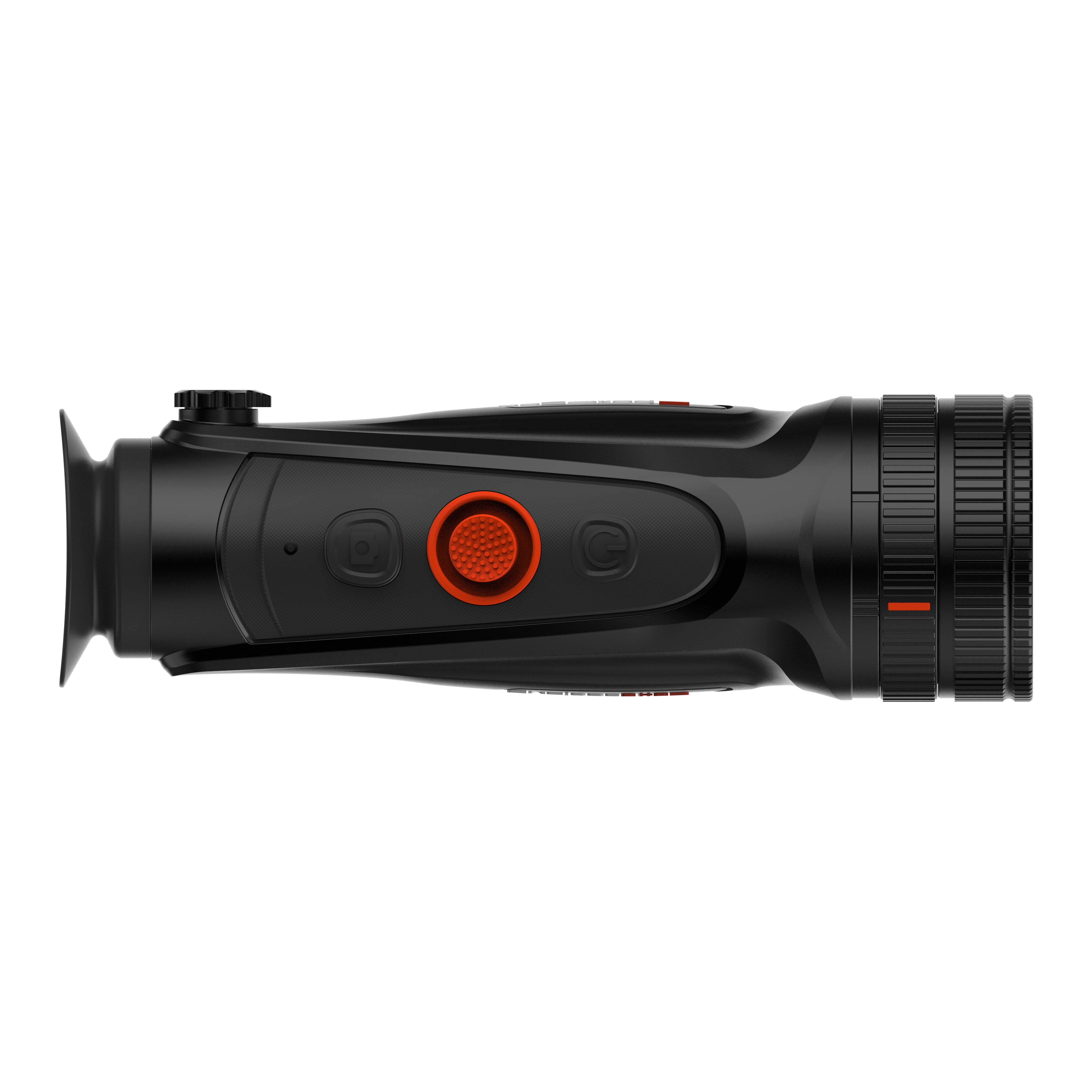

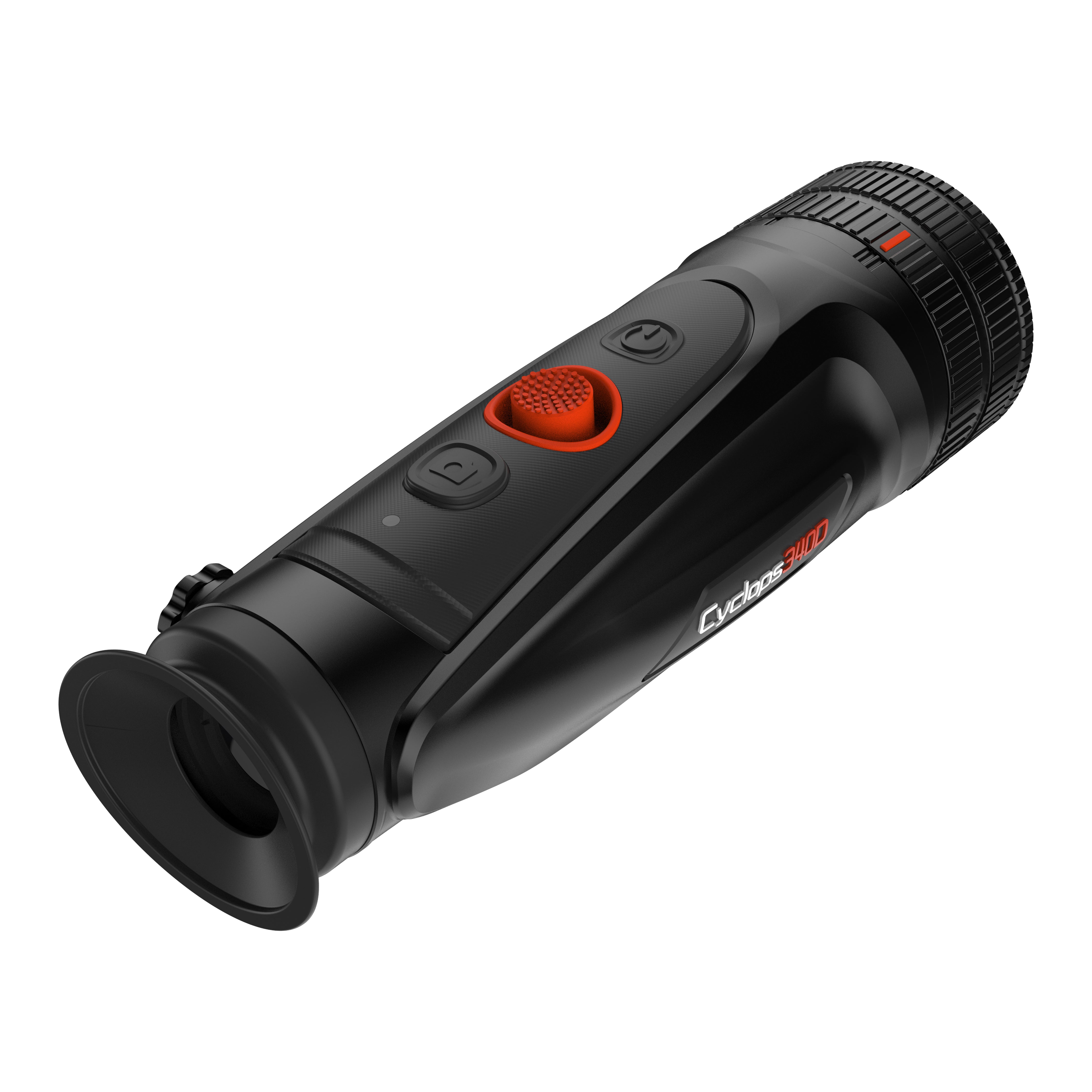

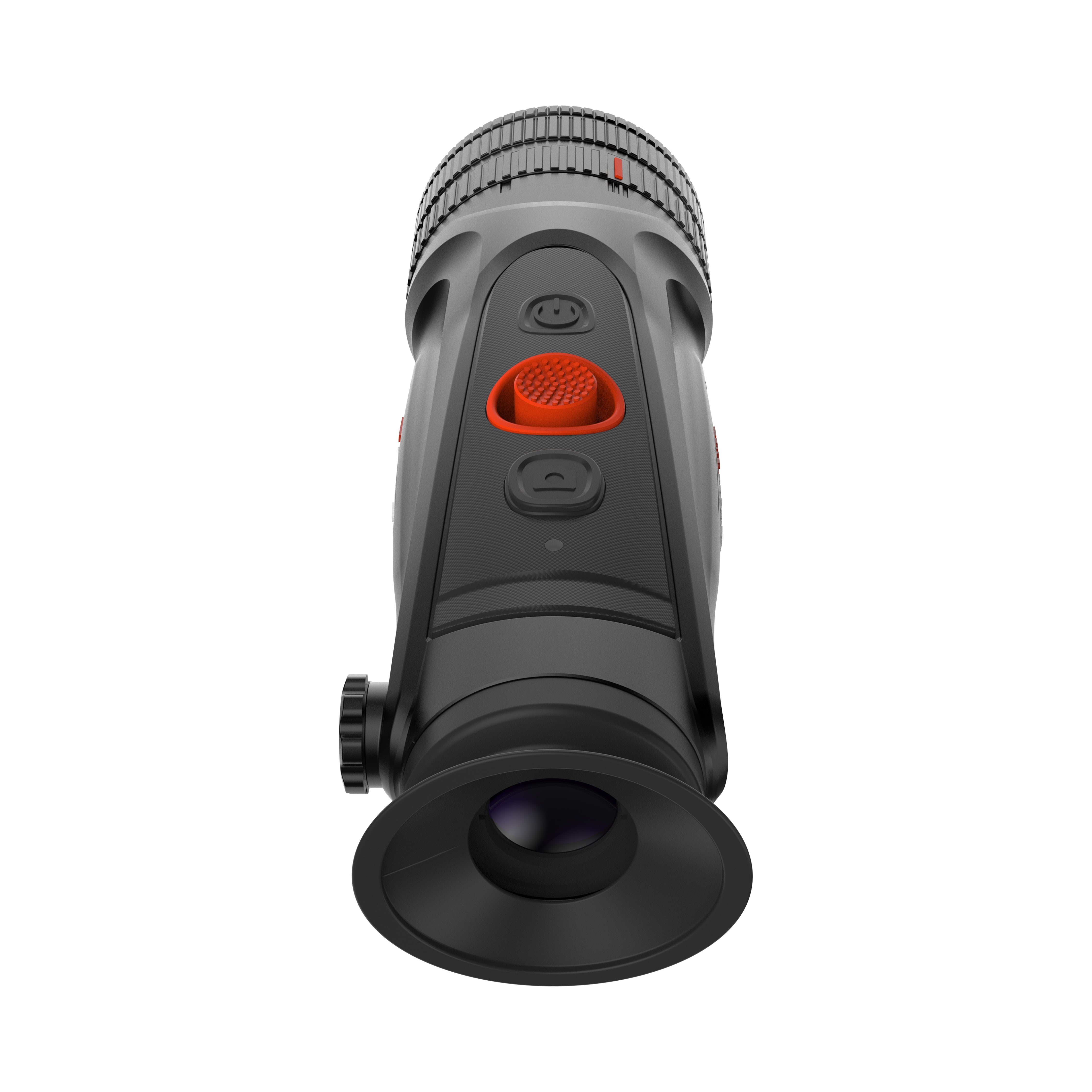

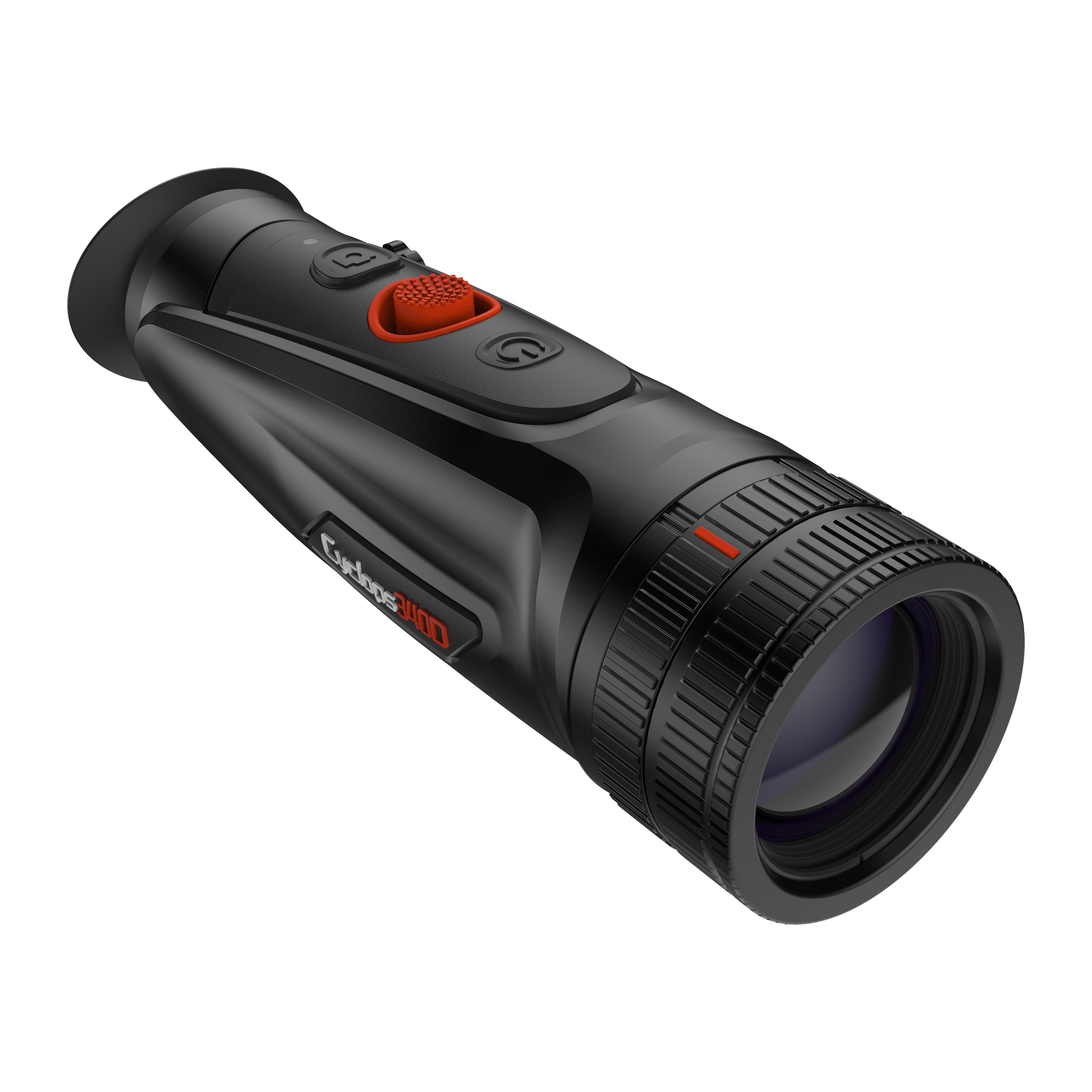

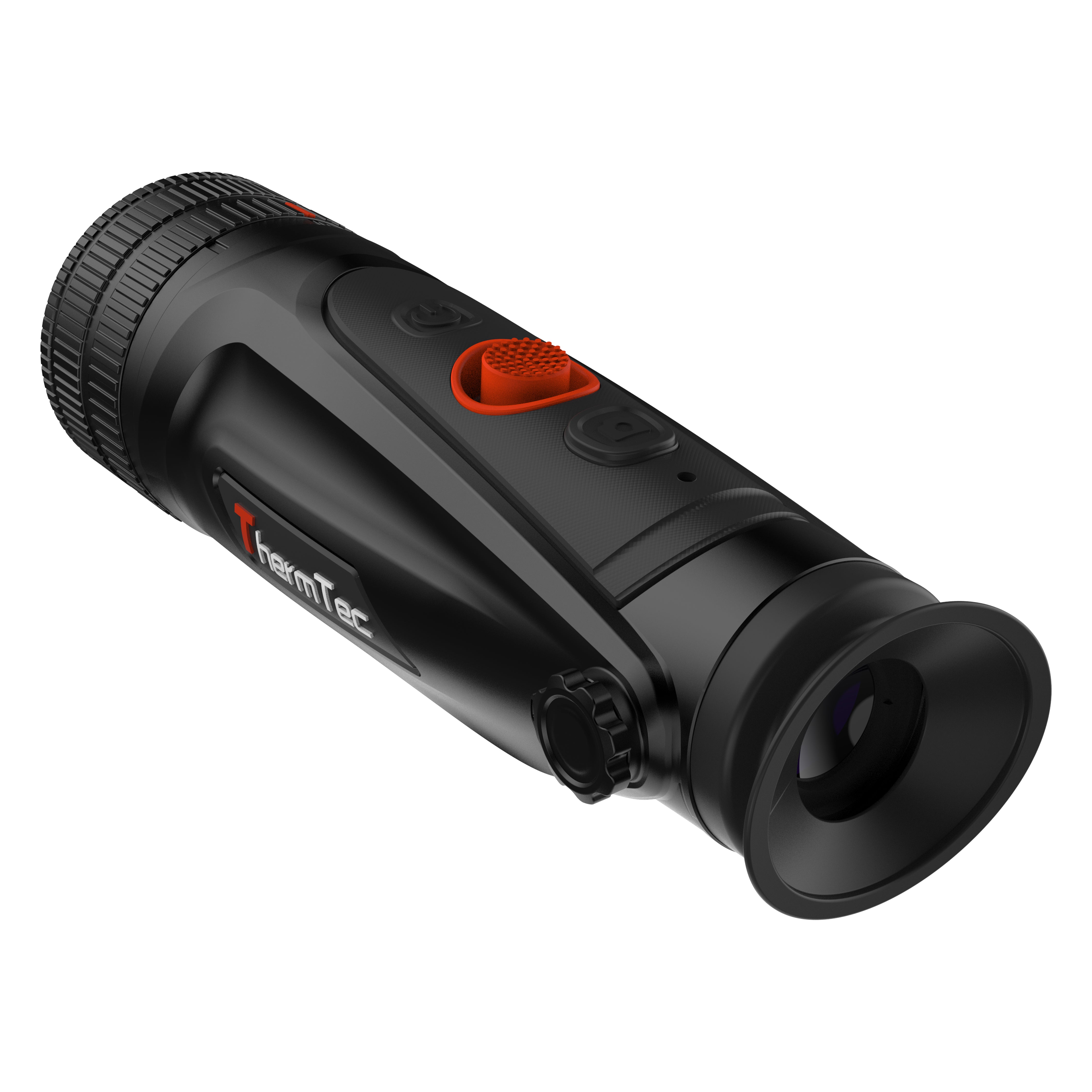

THERMTEC Cyclops 640D Thermal Imaging Monocular

Regular price €2.762,00
Tax included.
Quantity

Introducing the ThermTec Cyclops-D CP640D Thermal Monocular, the worlds most advance and versatile device. The Cyclops-D series offers users a market leading dual field of view system allowing the user to switch between lens systems with the twist of a dial, a <25mk thermal sensor for crystal clear imagery in the field and an ergonomic joystick for ease of use in the field. The ThermTec-D Cyclops CP640D offers users a 20mm and 40mm dual lens system combined with a 640px thermal sensor to deliver outstanding value for money.

DUAL LENS SYSTEM
The Cyclops-D CP640D Thermal Monocular comes with a dual-lens system allowing the user to switch from a 20mm lens to a 40mm lens with the turn of a wheel. The 20mm lens gives the user a wide field of view and the 40mm lens allows for long-range detection and identification of any target.

TWO IMAGE MODES
Designed with both WDR mode and target mode, the ThermTec Cyclops-D series captures details clearly under different scenarios as needed. WDR Mode is suitable for high-contrast lighting conditions, while Target Mode helps you to focus more on your targets.

IP67 PROTECTION
Providing a IP67-rated weatherproof performance, the CP640D is protected from heavy rainfall, snow, smoke, smog, or dust.

Resolution 640x512
Pixel pitch 12µm
NETD 25mk@300k
Spectral range 8-14µm
Frame rate 50HZ
Objective lens 20/40 F1.0 Dual FOV
Field of view 21.7°x17.5° / 11.0°x8.8°
Magnification 1.1X-2.2X
Digital zoom 1-6X continuous zoom
Eye relief 40mm
Exit pupil 6mm
Diopter ±5D
Display type AMOLED
Resolution 1024x768
Display size 0.39 inch
Color palette 6
Image model WDR (Wide Dynamic Range) Mode; Object Mode (Object enhanced)
Photo/video playback Yes
Language Multiple-languages
Reticle 7, adjustment coordinates
Built-in memory 32GB
PIP Yes
AI/MIL distance measurement Yes
Heat track Yes
GPS Yes
Real-time notification Yes
Internal battery Internal high capacity lithium ion (18650x2)
Battery life Continuous working time 12h
Type-C Supports battery charging, data transfer and analog video output
WI-FI Two-way Wi-Fi connection; App remote control
Working temperature -20?+50?
Protection level IP67
Weight, g 550
Size, mm 200x66x62
External cable Analog video cable; USB data cable
Other accessories Wrist strap; plush bag; user manual
